Make Up Air Heaters

550,000 BTU
Diesel Electric Heat

The Safety Thaw Model 4500DF was designed for large projects that require extremely reliable construction and make-up air heating. We provide an excellent option for commercial and industrial heating with our 4,500,000 BTU firing rate - this heater can handle the largest projects and provide complete temperature control during winter operation.

Understand your return on investment when it comes to site support equipment. The best and only lens to compare solutions is with the big picture methodology; initial cost and machine rent are essential; however, don't lose sight that the total cost of operation is the most authentic metric possible

nd

Generation Design

-

field proven

/7/365

continuous rated operation

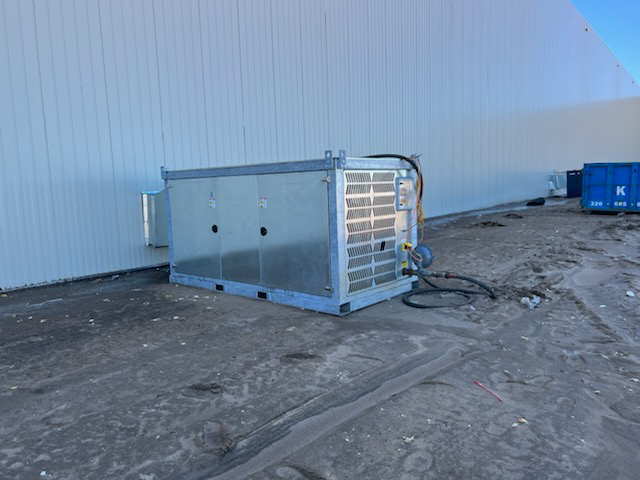

4500 Make UP Air Heater
4500DF
4500 Make UP Air Heater
4500DF

Benefits

  • Our makeup air system delivers forced mechanical ventilation to the project site, allowing treated air to circulate throughout it.
  • Our system raises the surface temperature of curing construction materials to speed up and optimize the curing process while still protecting quality
  • Manage site humidity by providing treated air; we can control site humidity with pressurization to speed up cure periods and limit the risk of mould.

Features

  • Variable controller technology adjusts to the ambient temperature to provide consistent heat to the project while reducing fuel use.
  • Designed for reliability: We design for continual uptime since heating equipment must be ready to function in any scenario, from freezing weather to other challenging conditions.
  • Stainless Burner Head: Our modulating burner head allows you complete control. However, let's face it: the ambient temperature changes frequently, and the system must be prepared to respond.
Parameter Detail
Max Input BTU
4,500,000 BTU/HR
Voltage
480V or 600V Versions
Fuel Gas Connection
2" NPT
Inlet Pressure Requirement
14" Water Column
Fuel Type
Natural Gas or Propane
Full Load Amps 480V
23 Amps @ 480V
Max Temperature
180 °F, 82°C
Blower Type
Forward Curved Centrifugal
Burner Management System
Siemens
Airflow Rating
25,000 CFM @ 2" Back Pressure
Dimensions
130" x 71" x 71"
Product Compliance
ANSI Z83.7 / CSA 2.14

Interested?

Our philosophy is to provide the greatest available solutions for our customers...it is about a never-ending commitment to improving our products to add value.
